03. Encoding

Encoding

Encoding

Silvestro Di Pietro

20/03/2023

Definition

Encoding

In computers, encoding is the process of putting a sequence of characters (letters, numbers, punctuation, and certain symbols) into a specialized format for efficient transmission or storage. Decoding is the opposite process – the conversion of an encoded format back into the original sequence of characters.

Charsets

Charsets Definition

Morse Code

Chars Encoding

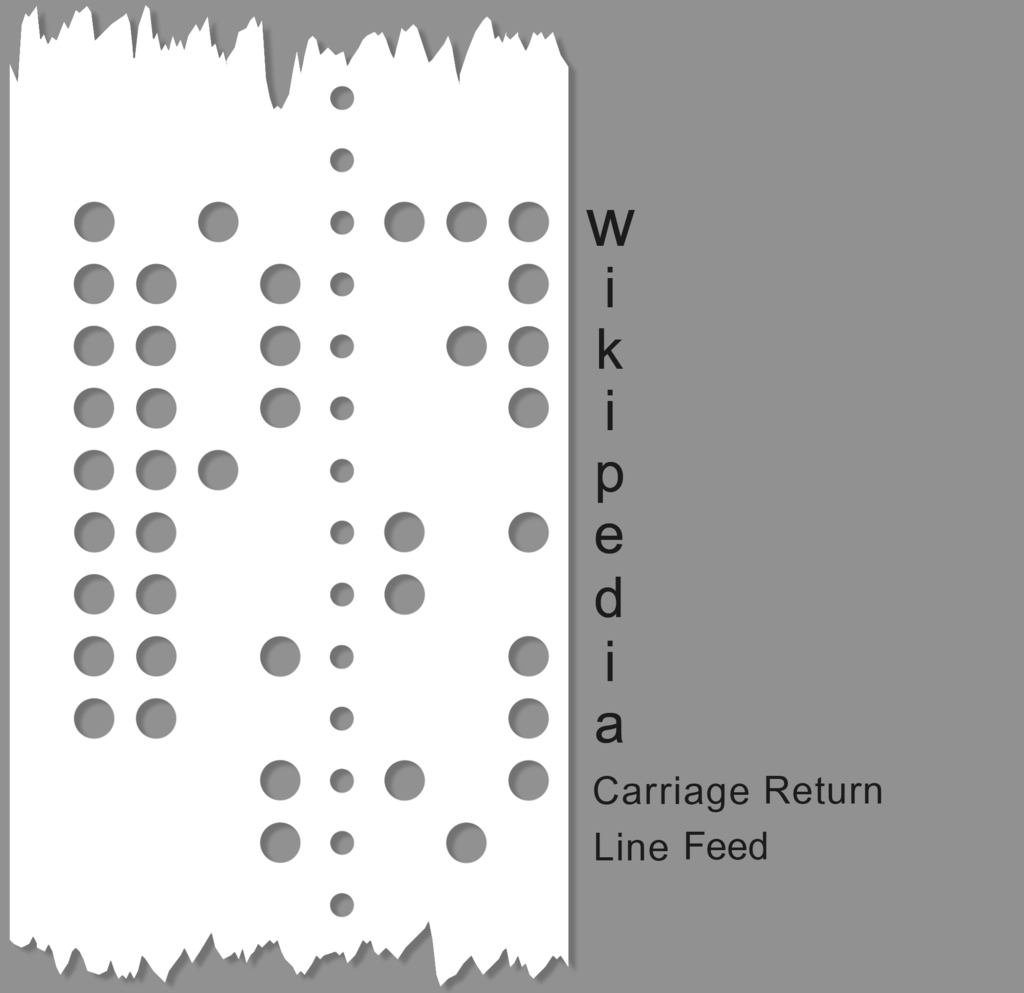

paper tape

Code Unit

A code unit is the “word size” of the character encoding scheme, such as ‘7-bit’, ‘8-bit’, ‘16-bit’. In some schemes, some characters are encoded using multiple code units, resulting in a variable-length encoding. A code unit is referred to as a code value in some documents

Code Unit Examples

Ascii

what is

abbreviated from American Standard Code for Information Interchange, is a character encoding standard for electronic communication. ASCII codes represent text in computers, telecommunications equipment, and other devices. Because of technical limitations of computer systems at the time it was invented, ASCII has just 128 code points, of which only 95 are printable characters.

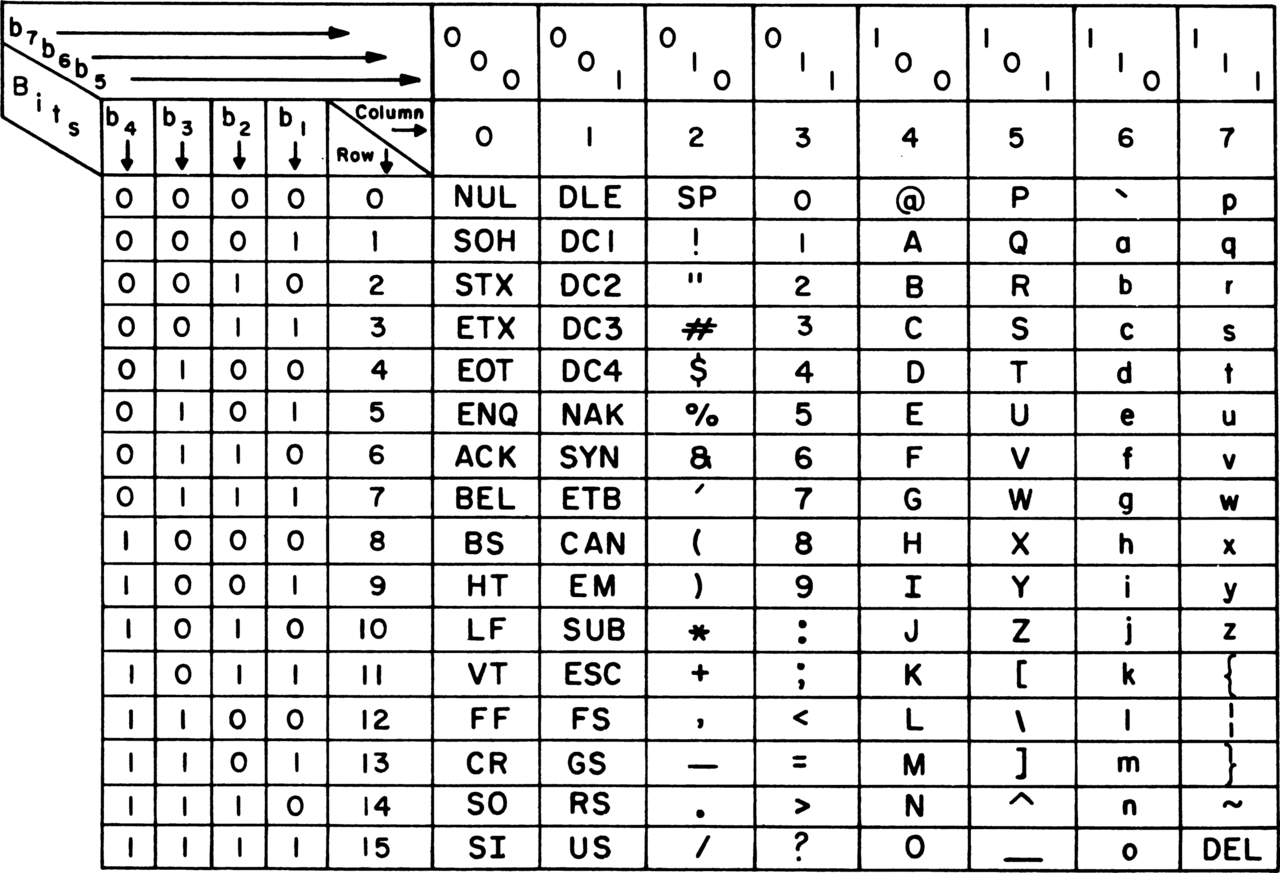

ASCII table

UTF-8

what is

UTF-8 is a variable-length character encoding standard used for electronic communication. Defined by the Unicode Standard, the name is derived from Unicode (or Universal Coded Character Set) Transformation Format – 8-bit.

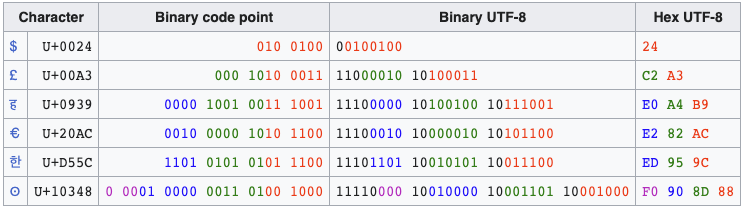

UTF8

UTF-8 is capable of encoding all 1,112,064 valid character code points in Unicode using one to four one-byte (8-bit) code units. Code points with lower numerical values, which tend to occur more frequently, are encoded using fewer bytes. It was designed for backward compatibility with ASCII: the first 128 characters of Unicode, which correspond one-to-one with ASCII, are encoded using a single byte with the same binary value as ASCII, so that valid ASCII text is valid UTF-8-encoded Unicode as well.

Conversion: ICONV

The iconv program converts text from one encoding to another encoding. More precisely, it converts from the encoding given for the -f option to the encoding given for the -t option. Either of these encodings defaults to the encoding of the current locale. All the inputfiles are read and converted in turn; if no inputfile is given, the standard input is used. The converted text is printed to standard output.

ICONV example

man iconv

cat exampleISO8859.txt | iconv -f ISO-8859  -t UTF-8 > exampleUTF8

UTF8 Example

HTML usage

 <!DOCTYPE html>
<html>
    <head>
        <meta charset="utf-8">
    </head>
</html>

BASE64

What is

In computer programming, Base64 is a group of binary-to-text encoding schemes that represent binary data (more specifically, a sequence of 8-bit bytes) in sequences of 24 bits that can be represented by four 6-bit Base64 digits.

Usage

Binary files cannot be transmitted or stored easily because in a binary file there are bytes, or better, sequence of bits that will interfere within the transmit protocol o the data storage format (eg a binary file sent by email.) or database storage

how encode/decode

shell time!

In Unix you can b64 encode a binary file using the shell command base64

cat images/LogoIfom.png | base64 > images/LogoIfom.b64

cat images/logoIfom.b64 | base64 -d > decoded.png

b64 overhead

File name Size Base64 size Base64 gzip size
ifomLogo.png 5754 10233 5533

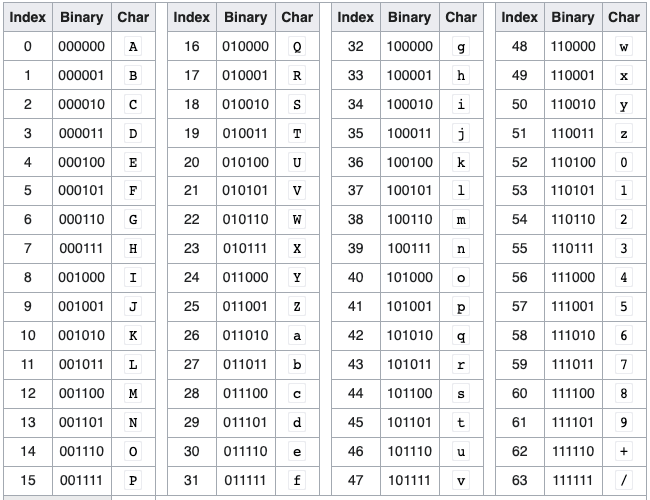

b64 ENCODING

URL encoding

Uniform Resource Identifier

RFC rfc3986

URL is a subset of th URI and is for Uniform Resource Identifier. in URL there are some reserved characters as forward slash

! # $ & ’ ( ) * + , / : ; = ? @ [ ]

Percent escaping

You can represent binary chars escaping (prefixing) them using a %

A (see ASCII table) can be represented by %41
